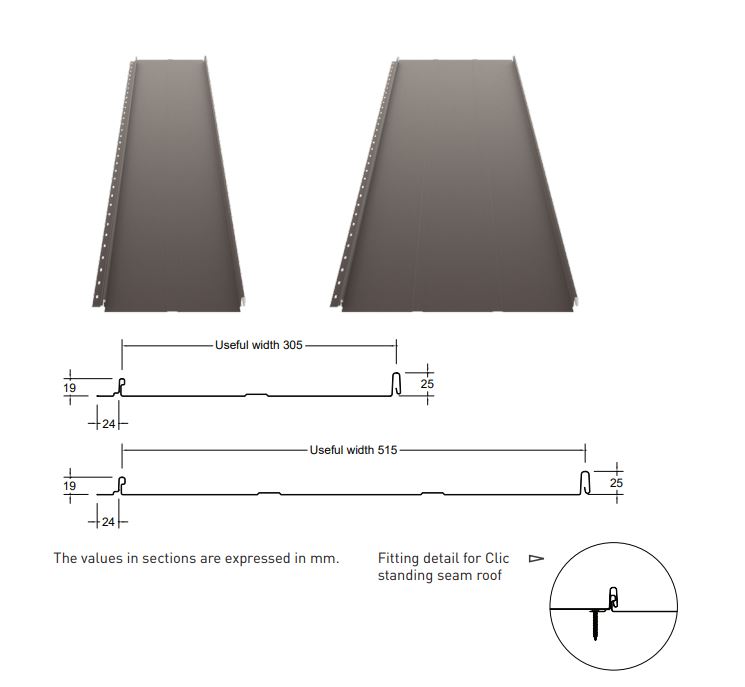

Standing seam panel

HAM FONO

PROFILE

The HAM Fono standing seam panel is reinforced with a self-adhesive anti-condensation felt with sound absorption properties.

The felt, applied to the inside of the HAM Fono profile, has superior resistance to extreme ambient temperatures, absorbs and eliminates condensation under the panel and can replace the anti-condensation membrane.

One of the main benefits of the membrane is sound absorption, which results in a substantial reduction in the noise produced by rain on the metal roof surface.

ADVANTAGES

ABSORPTION AND ELIMINATION OF CONDENSATION

Absorption and elimination of condensation caused by temperature differences.

NOISE REDUCTION

Reduction of noise produced by rain on the surface of the metal roof.

EASY MAINTENANCE

Easy to maintain, does not require any special maintenance, except for a metal roof.

TECHNICAL INFORMATION FONO MEMBRANE

Composition: PES/PE/synthetic rubber

Special feature: water absorption

Weight: 95 g/m².

Thickness: < 1 mm

Water absorption at 0°: min 900 g/m².

Flammability of the membrane: A2 – s1, d0

Strength: min 10 N/25 mm

Sound absorption: 0.42 Db

Heat transfer capacity: 0.038 W/mK

COATINGS:

The premium polyurethane coating HAM NOVO, is distinguished by its superior paint quality and 55 µm thickness. This combination provides high scratch resistance and extensive protection against depigmentation, being one of the most durable coatings on the market with a 30-year aesthetic guarantee.

The HAM NOVO coating is available in :

RAL7024 Graphite Grey

RAL8017 Grey brown

RAL8019 Chocolate brown

RAL9005 Black

TYPE OF STEEL AND STRUCTURE

The pre-painted sheet is made of high-quality steel, minimum S250GD, hot-dip galvanised with a zinc protection of minimum 275 g/m², which gives it a corrosion resistance and a mechanical guarantee of 50 years, under normal environmental conditions.
